1. Basic informations:

1) Feeding material information:

   a. Auto shredder residual(ASR)

   b. Capacity: 30 TPH

   c. Status: loose

2) Land information:

   L*W*H (around 100-150m*20-30m*8-12m)

   With roof

3) Power requirement

    Shredding system around 300-10000 kW

    Sorting system around 200 kW

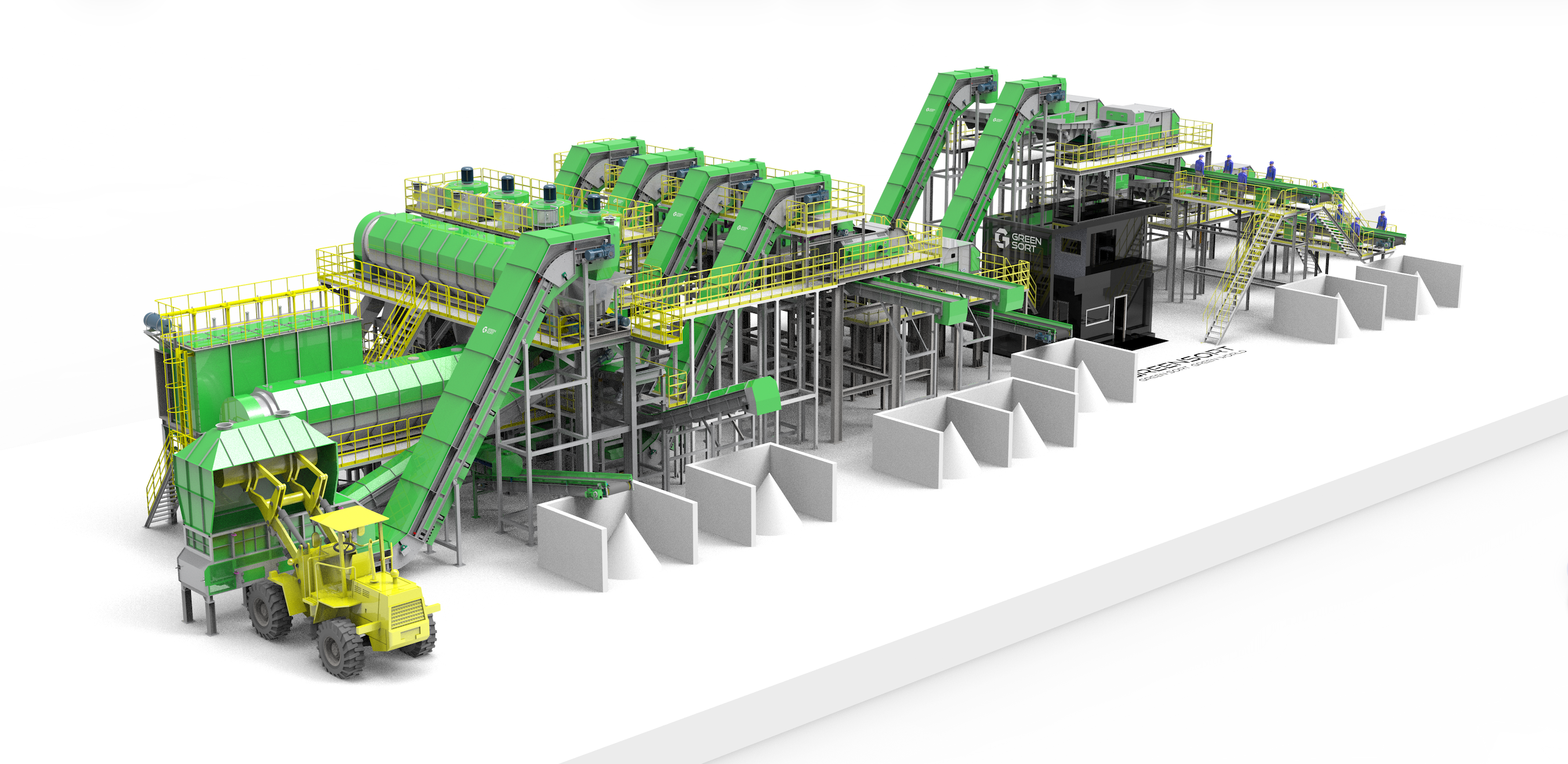

4) Main Equipment and its function

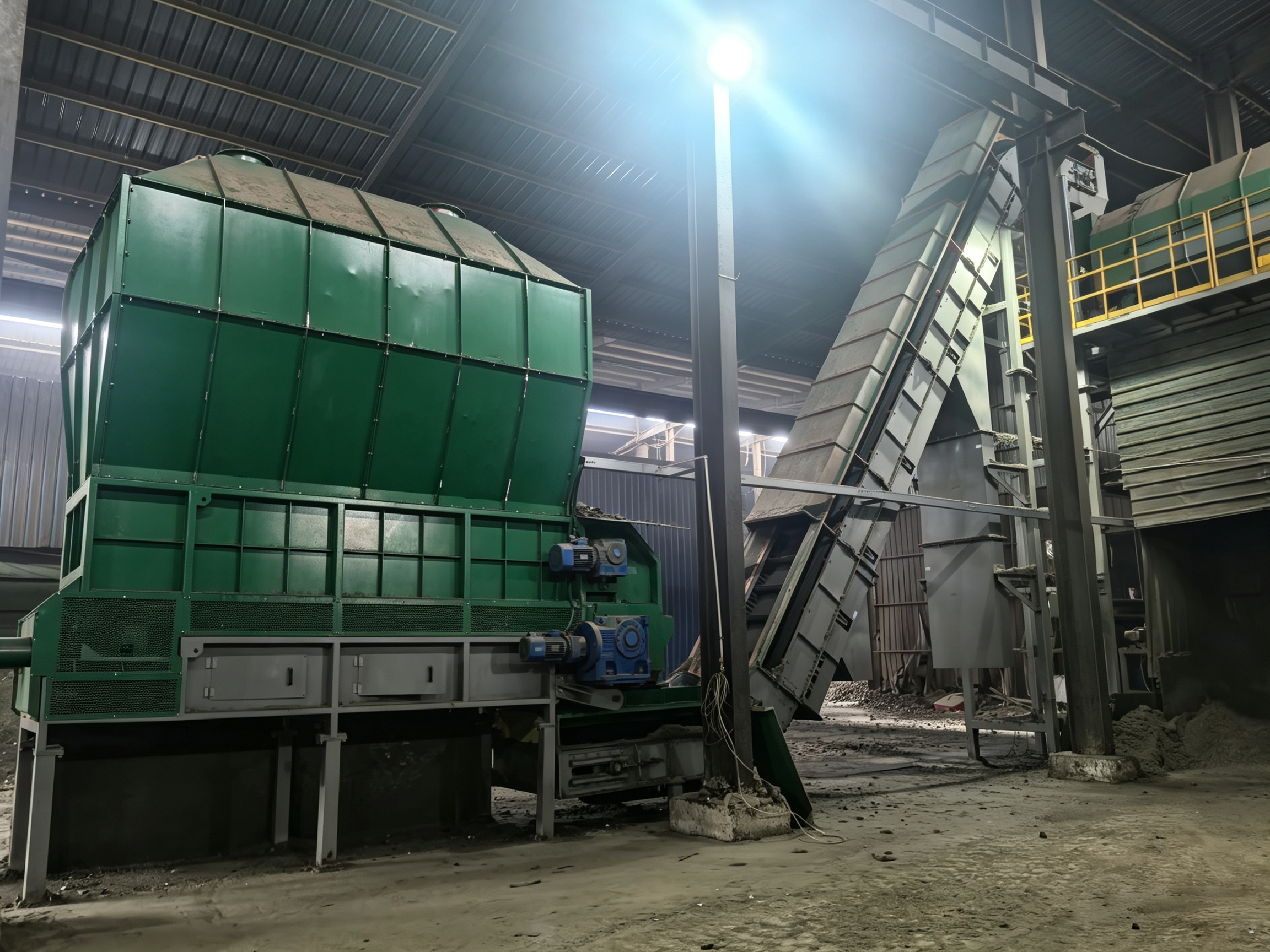

    Hammer mill shredder(size reduction)

    Drum magnetic separator(remove ferrous metal)

   Zig zag Air separator(remove light materials like dust, sand,Aluminim powder)

    Chain plate feeder(hopper for feeding)

   Two stage trommel screen(feeding material classified into 5 fractions per size)

   Eddy current separator(recovery Aluminium and remove contaminations like     plastic, and rubber.)

   Metal sensor sorter(recovery stainless steel and wire and PCB board)

5) Special design

    Whole plant with CE certificate

    Hammer mill sound proof to reduce noisy

    De-dusting system to keep the plant less dust pollution

    Eddy current separator to get high non-ferrous metal recovery

    Metal sensor sorter to recovery stainless steel

    Tower design to save the land cost
