Hydraulic scrap shears have acquired a worldwide reputation in the field of metal collection and recycling.
product scenario
Equipment Introduction
Description:

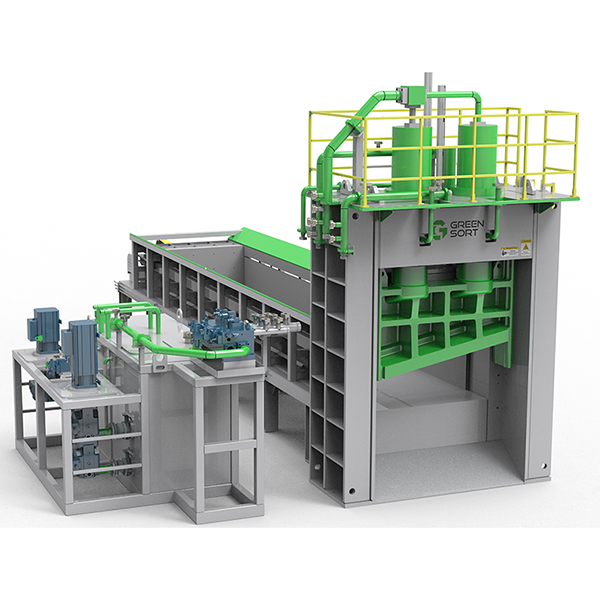

Gantry shears are heavy-duty hydraulic machines used primarily in the metal recycling industry to cut large volumes of bulky scrap—such as steel plates, I-beams, and automobile bodies—into smaller, manageable pieces for melting and transport。
How Gantry Shears Work
Operation involves a largely automated, high-efficiency cycle:
Loading & Compaction: Materials are loaded into a feeding box, where a hydraulic lid or side cylinders compress the scrap.
Feeding & Shearing: A pusher moves the material, and a massive vertical blade (delivering hundreds to thousands of tons of force) slices it.
Repetition: The cycle repeats automatically for continuous processing.
Key Specifications
Force & Thickness: Industrial models typically offer 100 to over 2,000 tons of pressure and can cut steel up to 100mm (nearly 4 inches) thick.
Dimensions & Speed: Blade lengths generally range from 1,400mm to 2,000mm, operating at 3 to 8 cuts per minute.
Common Applications

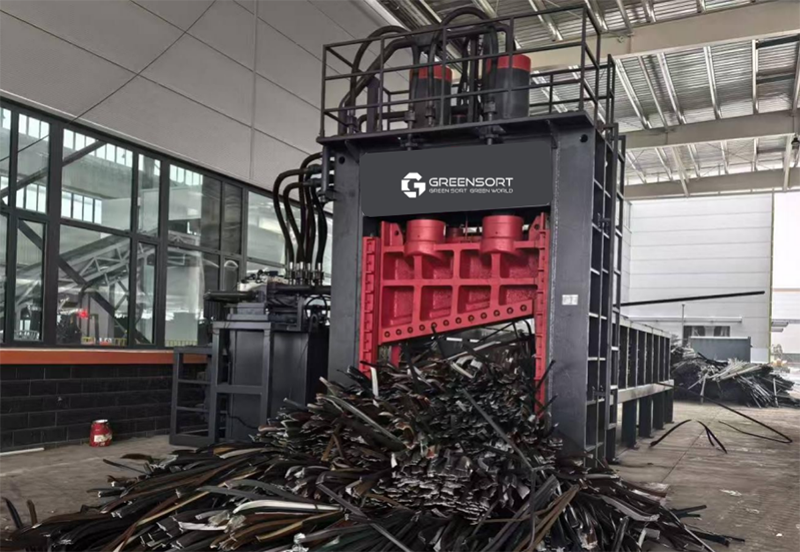

Gantry shears are critical for processing mixed heavy scrap, rebar, and end-of-life vehicles (ELVs) at scrap yards and steel mills, as well as for on-site demolition.
Specification:
| No. | Model | Belt width(mm) | Vibrating feeder power(kW) | Feeding size(mm) | Capacity(t/h) | Power(kW) | Dimension(mm) | Weight(kg) | ||
| L | W | H | ||||||||
| 1 | GMS-12 | 1200 | 2*1.1 | 10-120 | 3-5 | 4+35 | 8500 | 1710 | 2127 | 4000 |
| 2 | GMS-18 | 1800 | 2*1.5 | 10-120 | 5-8 | 5.5+45 | 8500 | 2310 | 2127 | 5000 |
| 3 | GMS-24 | 2400 | 2*2.2 | 10-120 | 8-12 | 7.5+55 | 8500 | 2910 | 2127 | 6000 |
Features:
1. Two types models for Coarse size range can be 10-120mm and Fine size can be 3mm. Adopt high precious valve to guarantee the good performance of metal rejecton.
2. High throughput for higher yield based on high presicion valve and high speed conveyor.
3. Mudular design to keep the maintenance easy.
4. Metal recovery can up to 95%. like Stainless steel.
