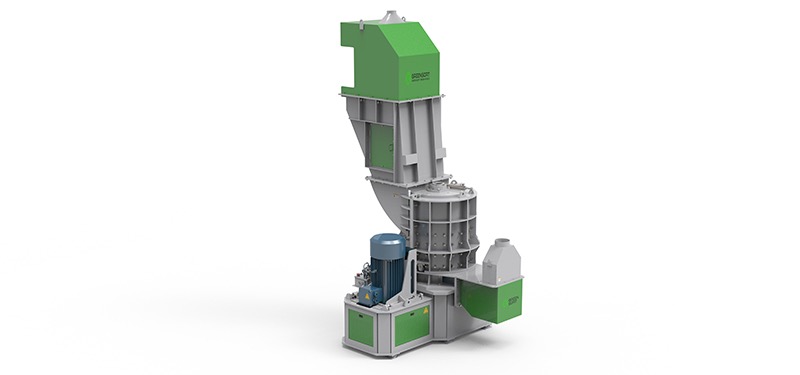

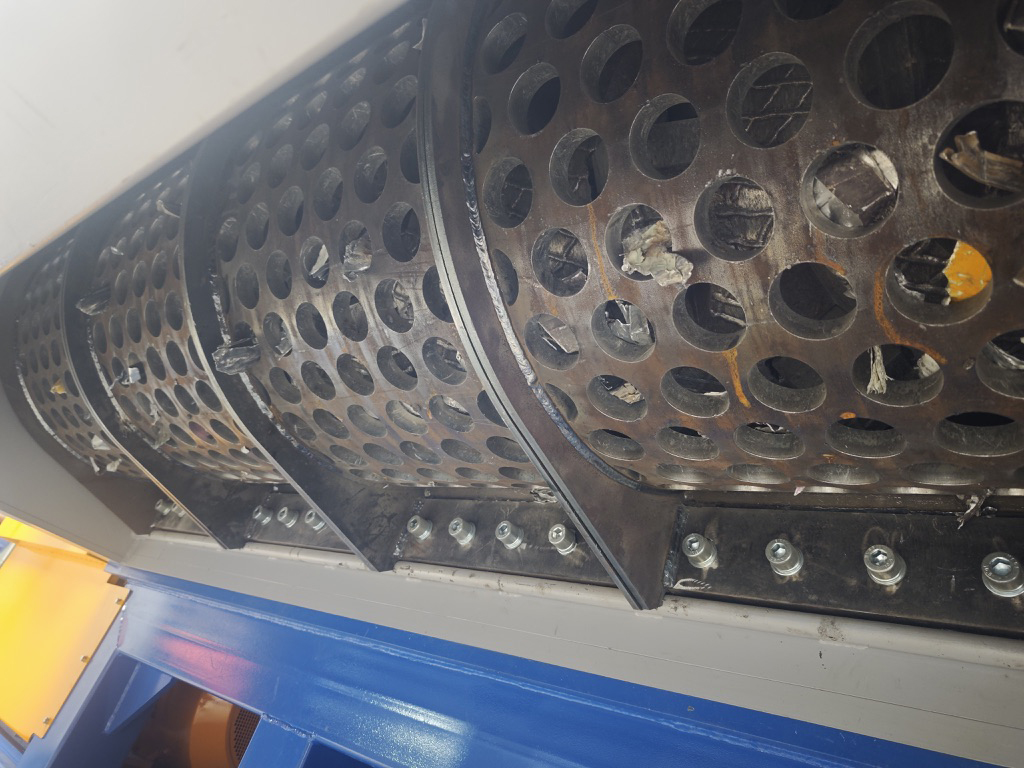

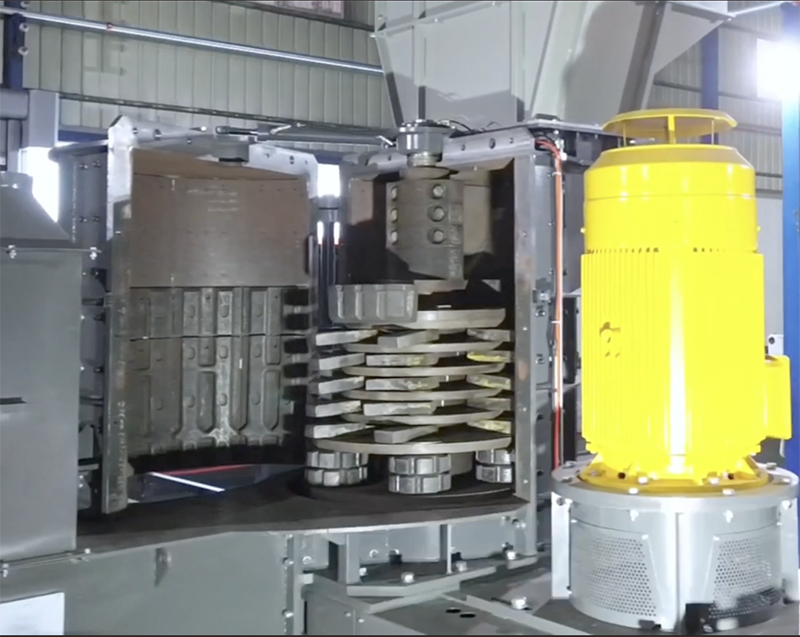

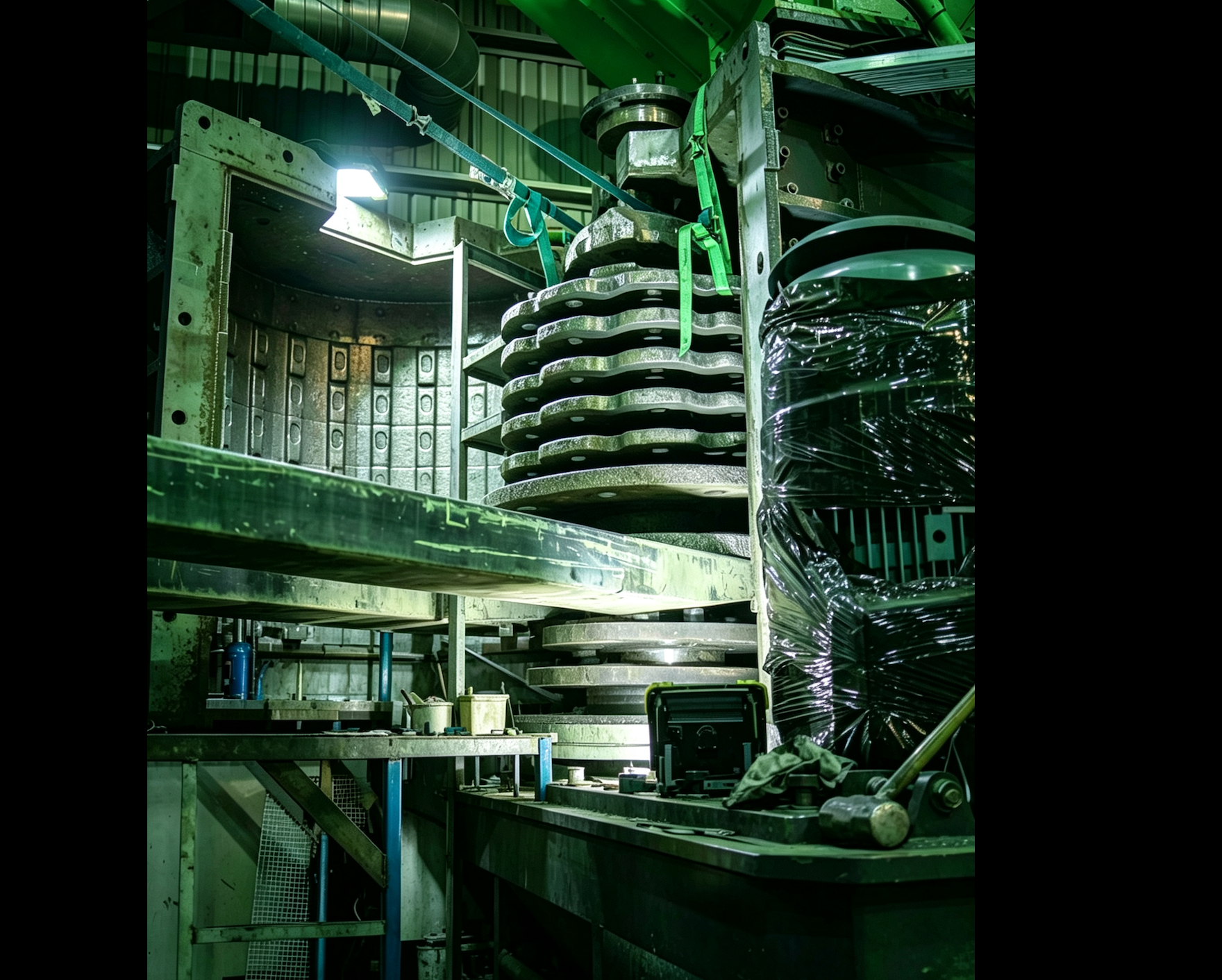

Greensort vertical hammer mill is an shredder machine used to reduce the size of materials through high-speed impact. Unlike traditional horizontal mills, its drive shaft is oriented vertically, allowing material to be fed from the top and fall through a grinding chamber where rotating hammers crush it against jagged wear plates or screens. This design is particularly valued in metal recycling for its ability to "ball up" light scrap into high-density fragments and for its easier maintenance access compared to horizontal alternatives.

Application:

A. The E-Waste recycling industry , such as the disintegration of used refrigerators and small household appliances;

B. The UBC in the waste aluminum industry;

C. The disintegration of copper and aluminum water tanks;

Advantage:

Material Liberation: These mills are highly effective at separating different fractions, such as liberating metals from plastic or insulation, which is critical before sorting.

High-Density Output: The vertical impact process aggressively densifies pre-shredded material, creating clean, balled-up fragments that are ideal for foundries and reduce transport costs.

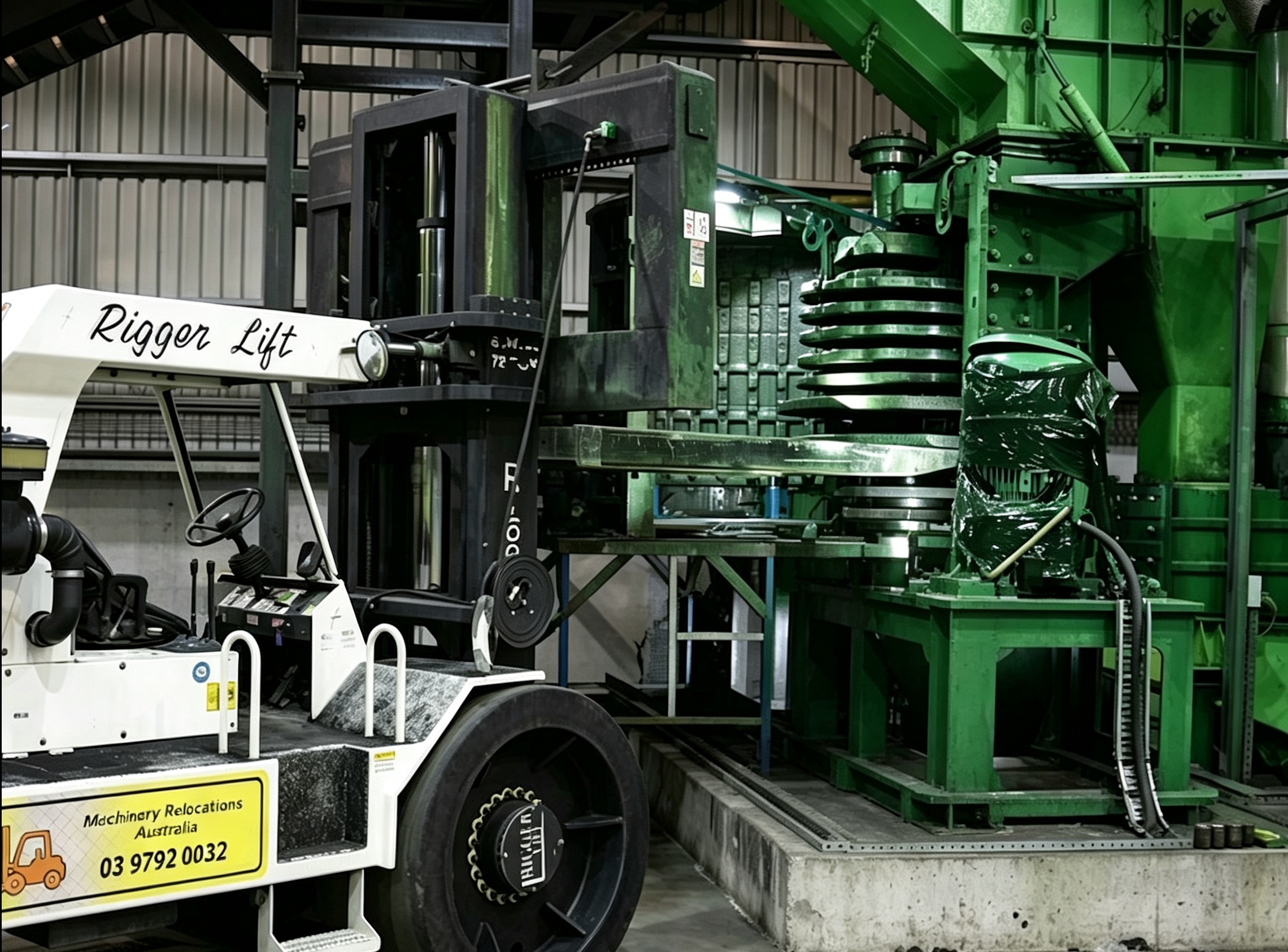

Reduced Maintenance Downtime: Maintenance is often simpler than with horizontal granulators; for instance, some models allow hammers and plates to be changed in about 15 minutes by two operators. The machine adopts European-style design and complies with CE standards;

The equipment operates through efficient automatic control, achieving better energy saving and power conservation;

The machine is equipped with an automatic lubrication system to ensure stable operation of the equipment;

High-quality and high-strength wear-resistant parts are used, significantly extending the service life of the equipment;

Reference:
